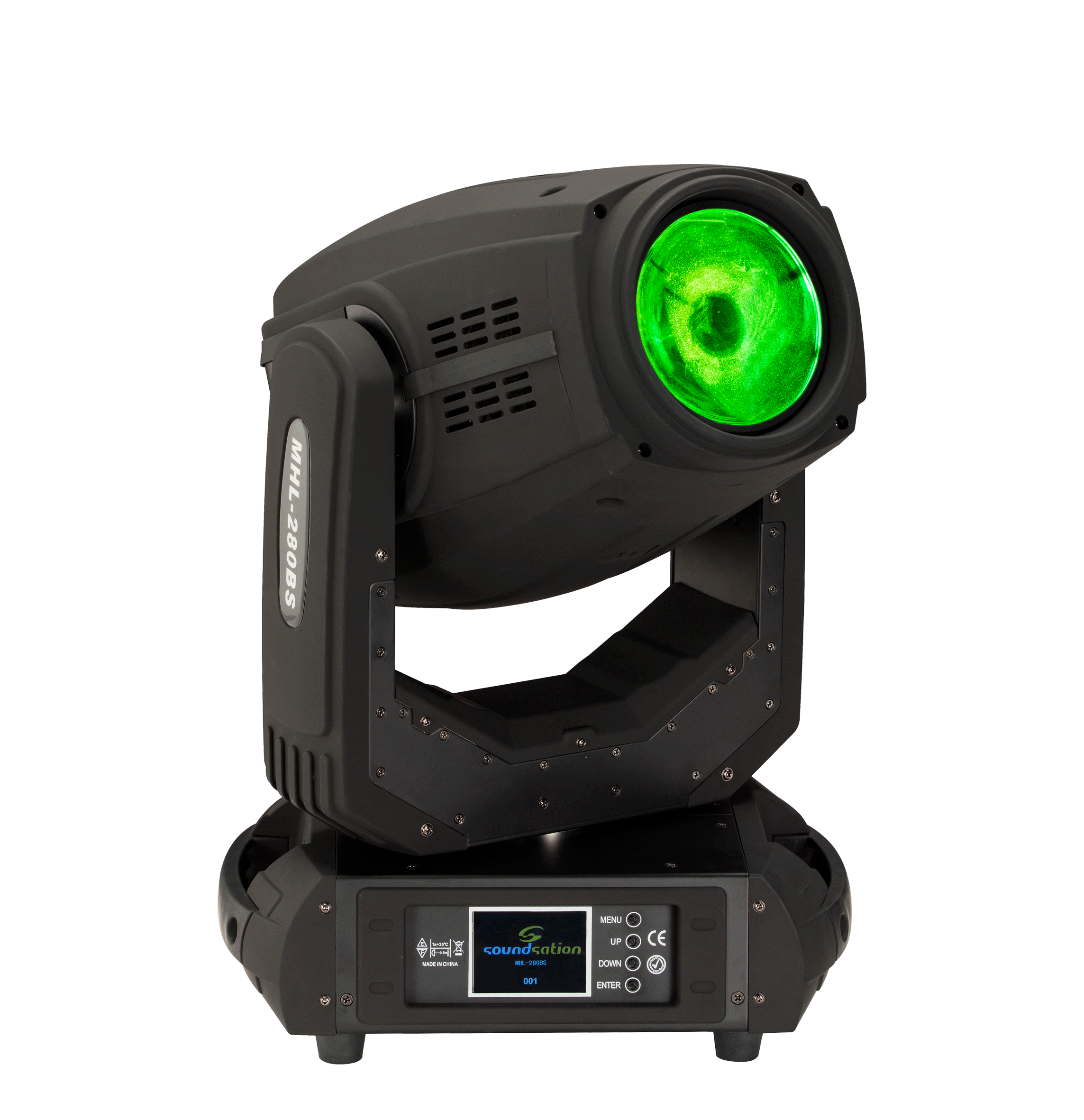

280W Beam-Spot-Wash 3in1 Moving Head with 10R lamp
Latest addition to SOUNDSATION family, this new moving head combines the advantages of the Beam, the suggestion of Wash and the effects of Spot worlds. The 10R lamp, quite prohibitive in terms of cost so far, has now become much more affordable, opening the doors of both outdoor and indoor applications in medium to large environments to this all-in-one baby.
MHL-280BS offers to professional users a palette of extremely wide functions. 2 gobo wheels (one with 9 interchangeable and rotating glass gobos; the other with 13 metal gobos), 2 prisms (one 8-facet, the other 6-facet) with frost effect, 1 color wheel with 14 colors + white, linear 0-20° focus, strobe effects, adjustable wash effect and an advanced user interface with touch-screen LCD, make this fixture real amazing. DMX control (with 5-pin and 3-pin connectors) is 16 or 24 channels.
Two versions are available: a normal version for fixed installation (in carton packaging); a set for rental applications, with the fixtures in a robust flight case.

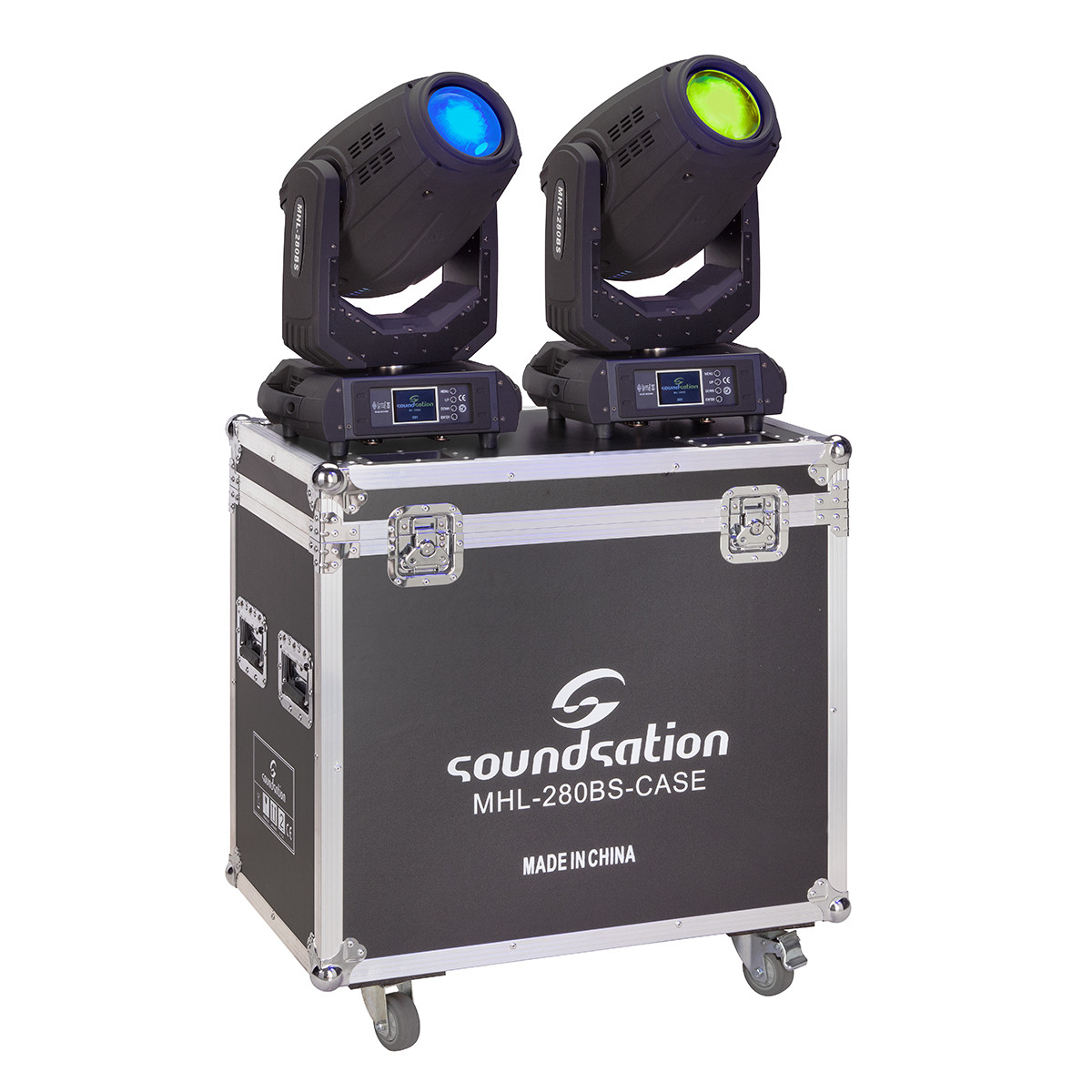

The kit includes a useful and robust flight case in which the moving heads are put upside down. In the central part there is a compartment door for cables and accessories. Two of the four wheels are braked.
Main features
- Light Source: Powerful 280 Watt standard 10R lamp
- Life span: 2000 hours
- Control: 16/24 DMX 512 channels
- Gobo wheel 1: rotatable with 9 glass gobos plus white plus auto rotation, changeable gobos (diameter: 15.4 mm, effective inner diameter: 13 mm)
- Gobo wheel 2: 13 metal gobos plus white
- Color wheel: 1 color wheel with 13 colors plus white
- Effect wheels - 2 rotating prisms: bilateral 8-facet circular prism and bilateral 6-facet linear prism, with frost effect
- Lens group of optics system: electric focus with beam angle 0~20°, adopting photoelectric reposition system (can automatically retrieve reset if false action happens accidentally)
- Wash Effect: adjustable wash effect angle
- Beam: 4° - 25° multi-class beam adjustment
- Focus: linear adjustment
- Dimmer: 0-100% linear adjustment (supporting mechanical strobe, adjustable speed strobe effect and strobe macro functions)
- Projecting range: Pan 540°, Tilt 239° (automatic accurate positioning)
- Zoom: linear zoom 4-25°
- Strobe: double strobe function, 0.5-14 times/sec, adjustable)
- User Interface: adopting color touch-screen LCD (2.8 inches). It directly monitors and set all functions, including lamp life-span. 180° rotatable.
