ESTRO BASS 12P 12" Bass-Reflex Professional Passive Subwoofer
Download product sheetESTRO BASS 12P is a passive, bass-reflex subwoofer that is compact, lightweight and very easy to use. It is ideal for both fixed installations and for live music events or general PA. ESTRO BASS 12P has a program power of 1000W with 12” professional custom woofer. This model has a sturdy, lightweight and stylish plywood housing with metal grille and acoustic f... Read more

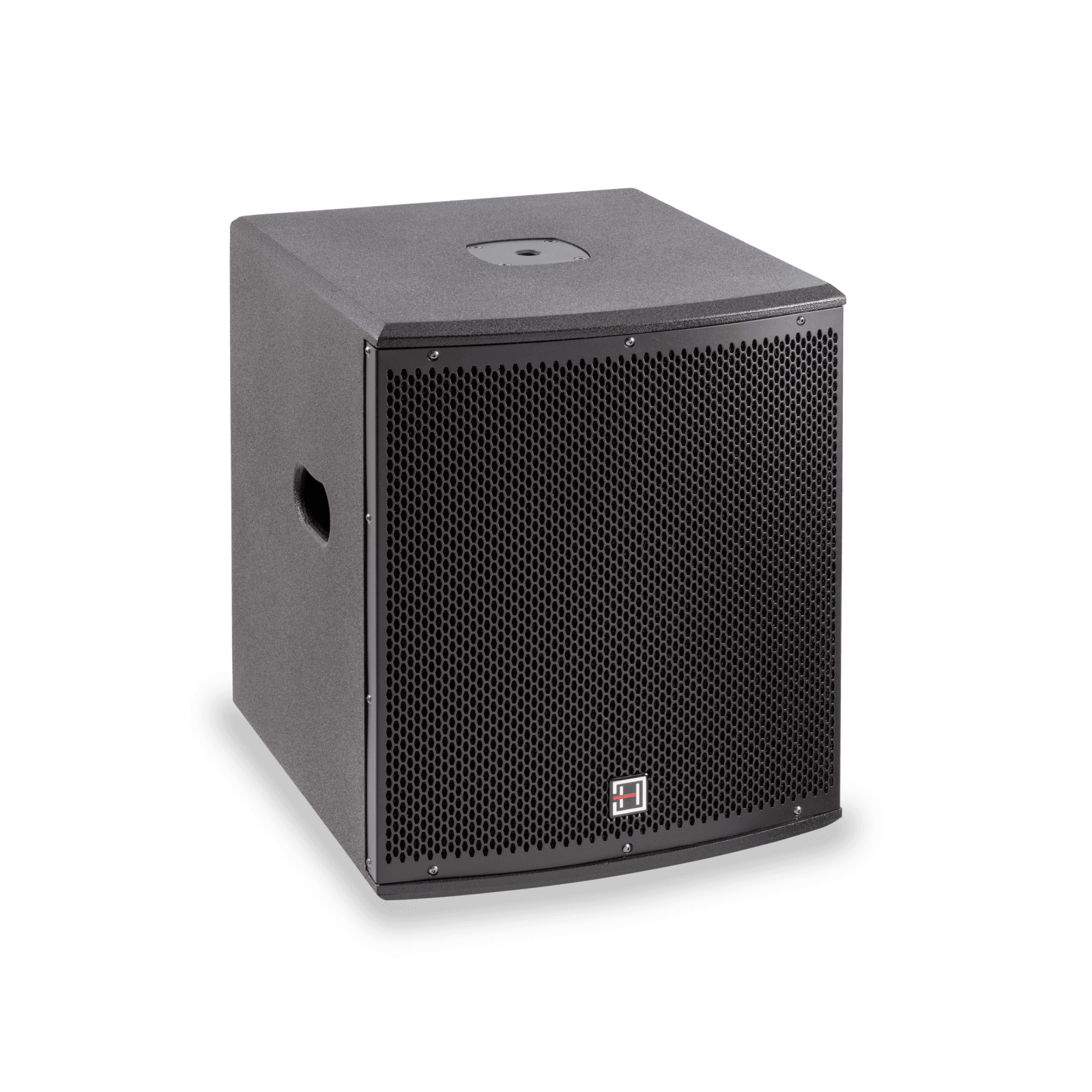

ESTRO BASS 12P is a passive, bass-reflex subwoofer that is compact, lightweight and very easy to use. It is ideal for both fixed installations and for live music events or general PA. ESTRO BASS 12P has a program power of 1000W with 12” professional custom woofer. This model has a sturdy, lightweight and stylish plywood housing with metal grille and acoustic foam to protect the transducers inside and give an attractive appearance. Finally, It has 2 recessed handles (1 on each side) and a standard M20 mounting hole to allow any type of installation with SUBST100-BK or SUBST100-M20 poles.
Collapse textProduct downloads
Product details
Key features
- Sturdy housing in plywood with front bass-reflex
- Anti-scratch powder coating
- 12" csutom woofer with 3" voice coil
- Power: 500W RMS - 8ohm (1000W Program / 2000W Peak)

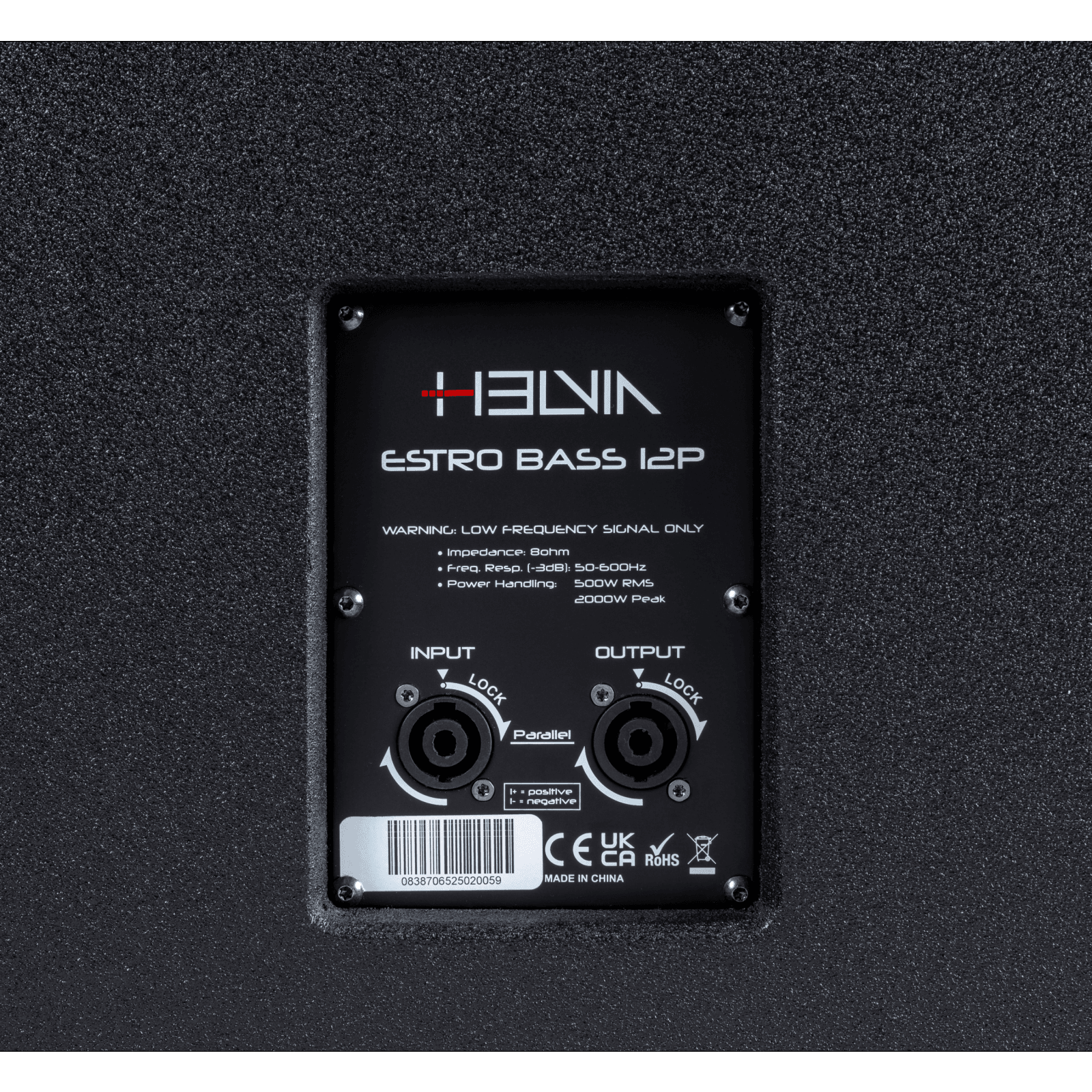

- Connection: Spekon Input and Output (+1 Positive, -1 Negative)

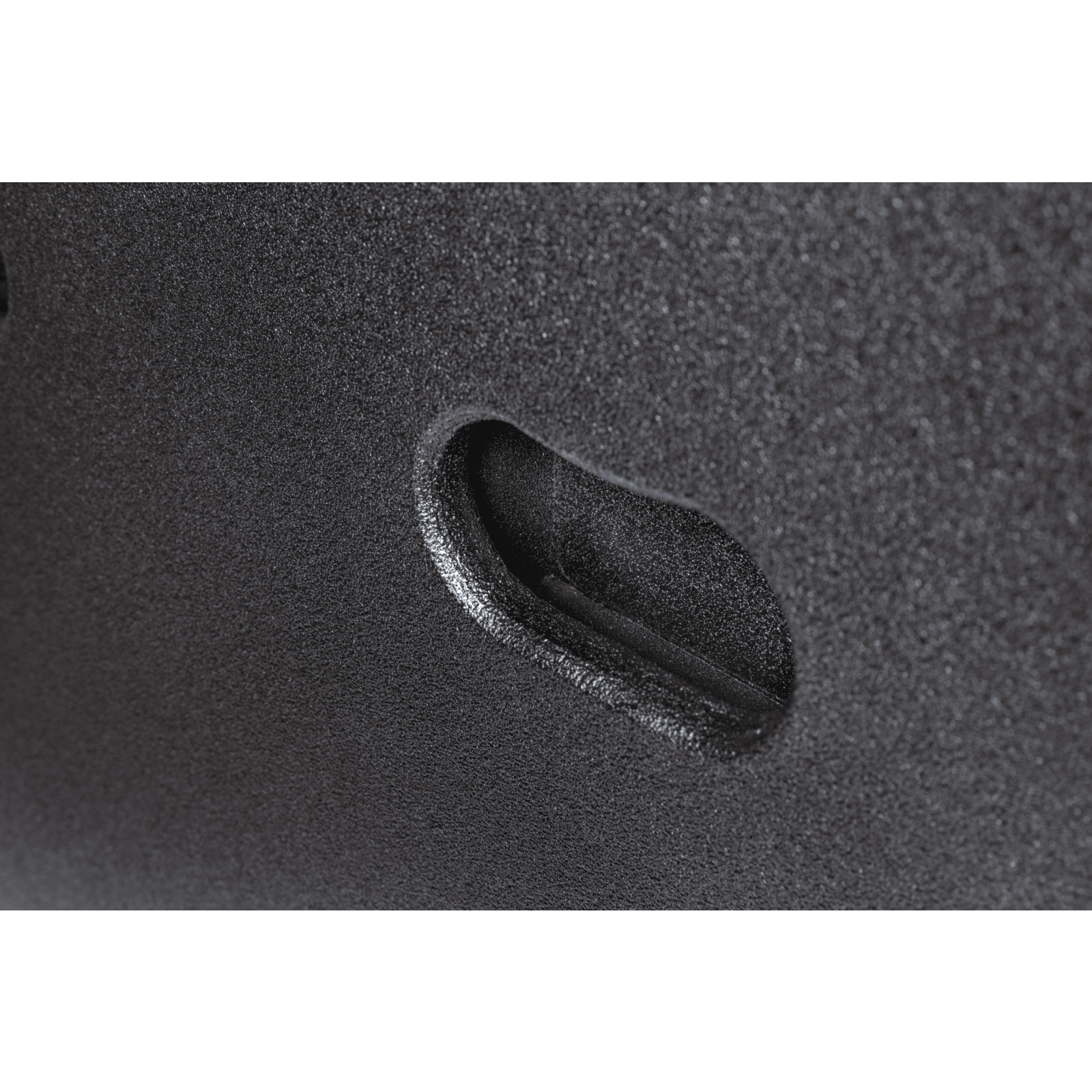

- Recessed handles (1 per side)

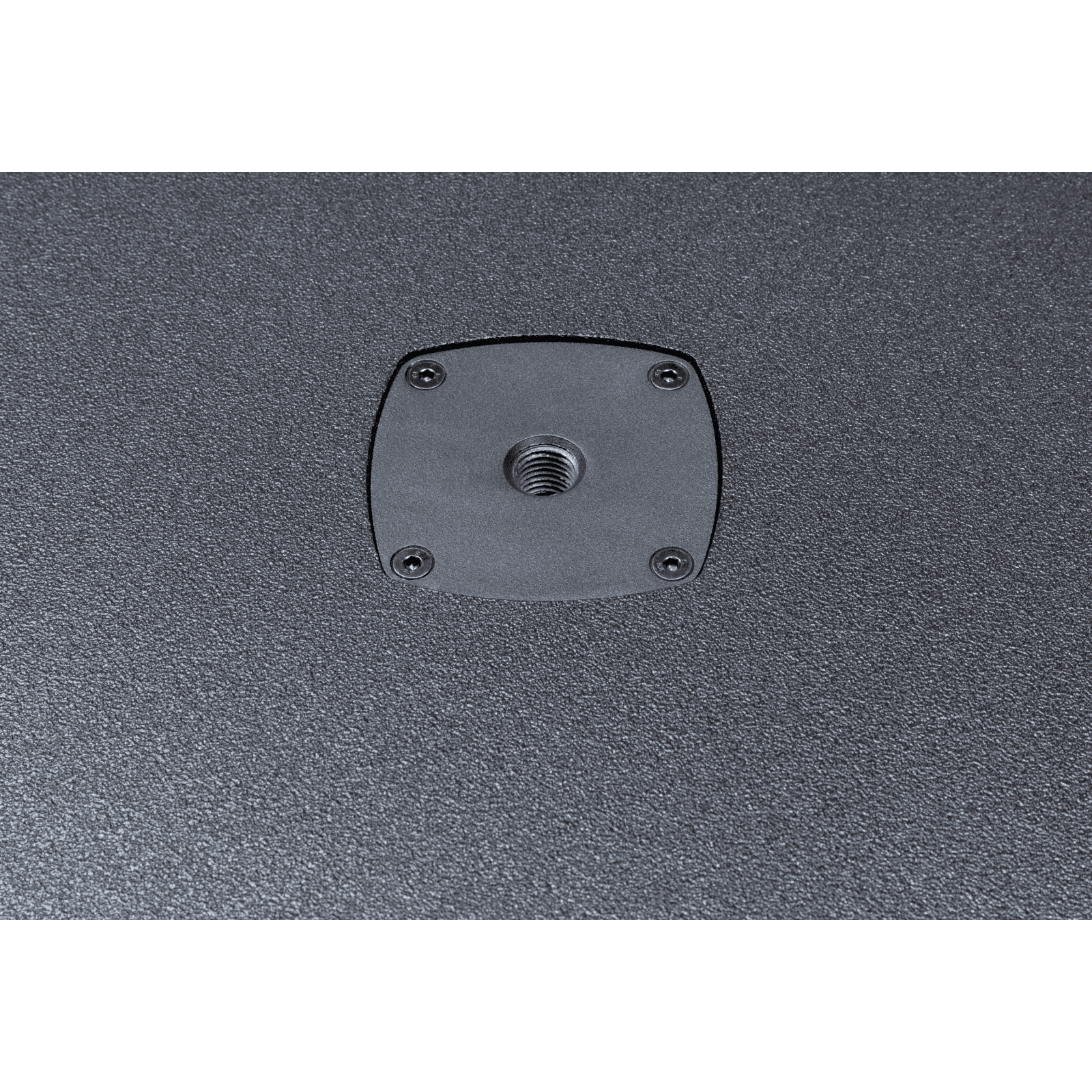

- Pole mounting with M20 thread
Specifications
-
Frequency Resp. (-10 dB)40Hz - 1KHz
-
Frequency Resp. (-3 dB)50Hz - 600Hz
-
Sensitivity (1m @ 1m)94dB
-
MAX SPL124dB
-
RMS Power500W
-
Peak Power2000W
-
Impedance8 Ohm
-
LF Diameter12"
-
LF Voice Coil3"
-
Input Connectors1x2 Poles Speakon connector (+1 Positive, -1 Negative)
-
Output Connectors1x2 Poles Speakon connector
-
Housing MaterialPlywood
-

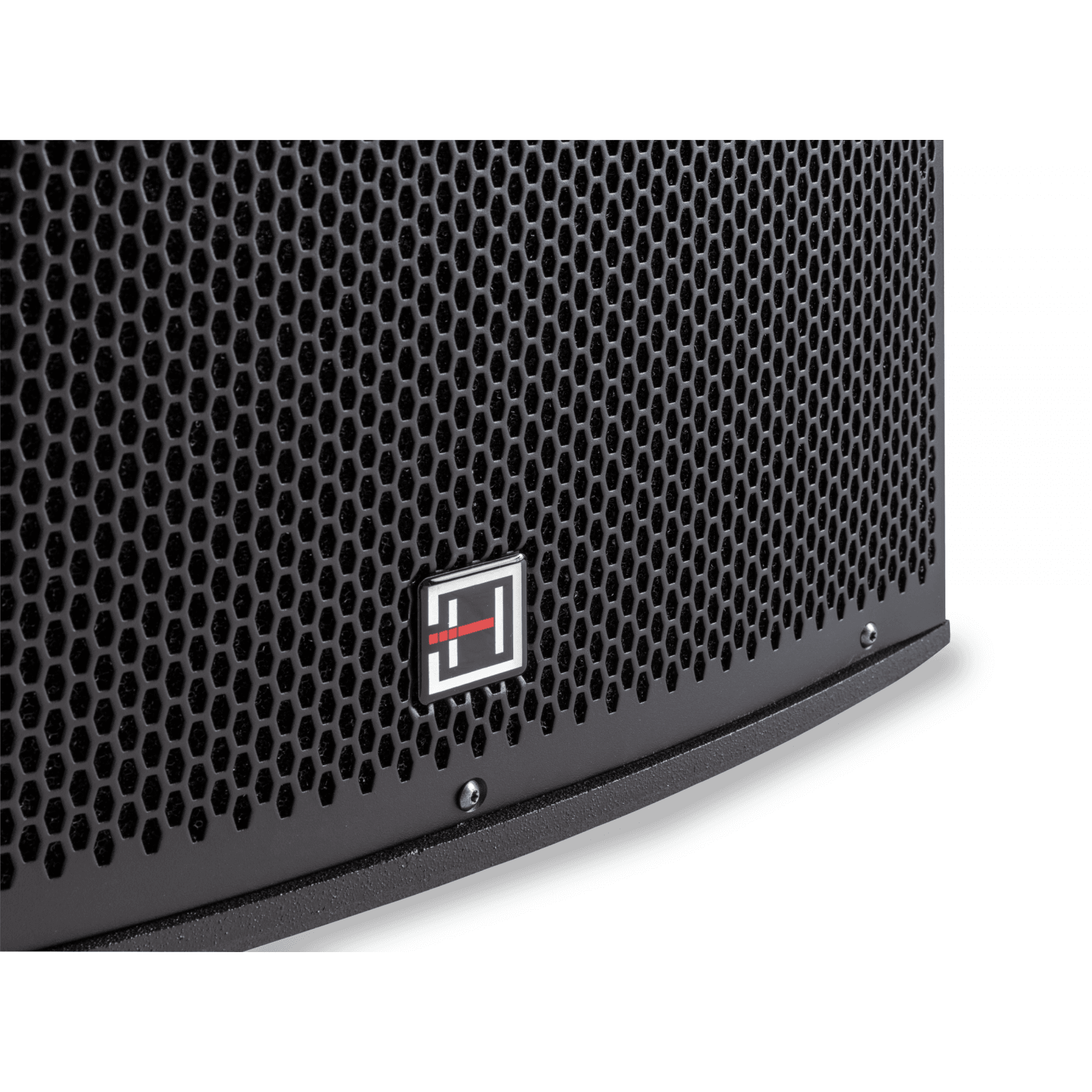

Grille MaterialSteel
-
Thickness Grille1.5mm
-
Handles2 Recessed handles (1 on each side)
-
Pole MountSUBEST100-BK or SUBST100-M20 (Optional)
-
Subwoofer Dimensions (WxHxD)420 x 500x 475 mm
-
Packing Dimensions (WxHxD)510 x 610 x 565 mm
-
Subwoofer Weight23,5 kg
-
Packing Weight27,2 kg
- More Less
