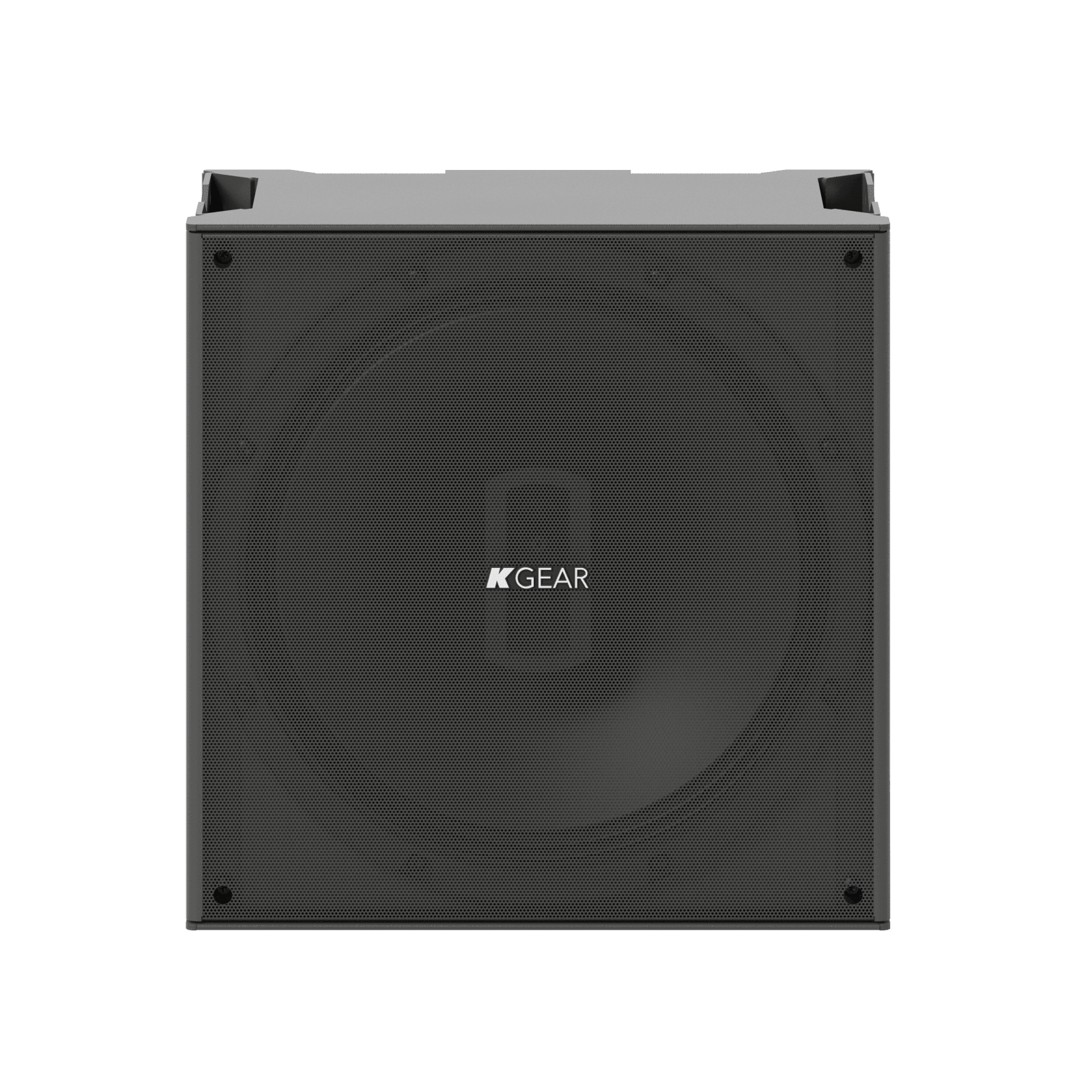

GH12 K-Gear GH12 12" Slim Array Module Black

Download product sheet

<p>Metal frame 12” cardioid coaxial PAT® SAT® K-array™ technologies high efficiency array passive element. Designed for high performance outdoor/indoor applications both for rental and permanent installations for touring, large auditorium, stadia, theme parks and clubs.</p>

<p>Weather resistant rugged metal structure box. High performance to size/weight ratio... Read more

<p>Metal frame 12” cardioid coaxial PAT® SAT® K-array™ technologies high efficiency array passive element. Designed for high performance outdoor/indoor applications both for rental and permanent installations for touring, large auditorium, stadia, theme parks and clubs.</p>

<p>Weather resistant rugged metal structure box. High performance to size/weight ratio featuring easy and fast setup possibility.</p>

<p>Suggested amplifiers GA43 and GA46.</p>

Collapse text

Product details

Key features

  • Designed for high performance applications
  • High efficiency in a compact box
  • Weather resistant

Specifications

  • Coaxial 12" passive speaker
  • 1" coaxial compression driver ferrite magnet
  • Continuous Power
    200W
  • Peak Power
    400W
  • Impedance
    32Ω
  • Frequency range
    125hz – 20khz (-6db average)
  • Maximum SPL
    129dB (peak) - crest factor 4 (12dB) measured at 1 m
  • Continuous SPL
    117dB
  • Coverage
    V.30° - H.90°
  • Power INPUT
    1 x Speakon
  • Power OUTPUT
    1 x Speakon
  • Dimensions WxHxD
    327mm x 334mm x 198mm
  • Weight
    13.8Kg
  • Material
    stainless steel
  • Color
    Black
  • IP Rating
    IP54
  • More Less
