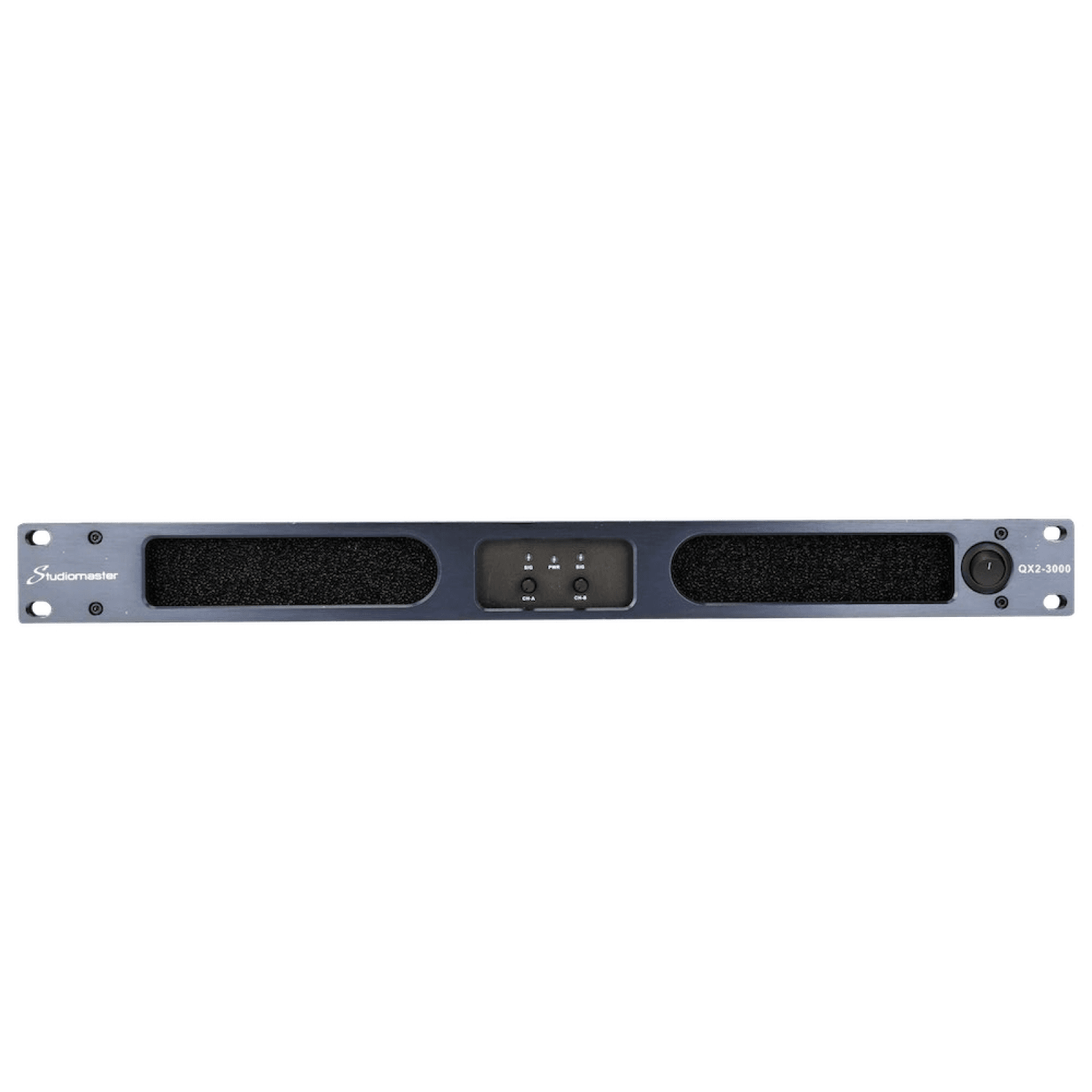

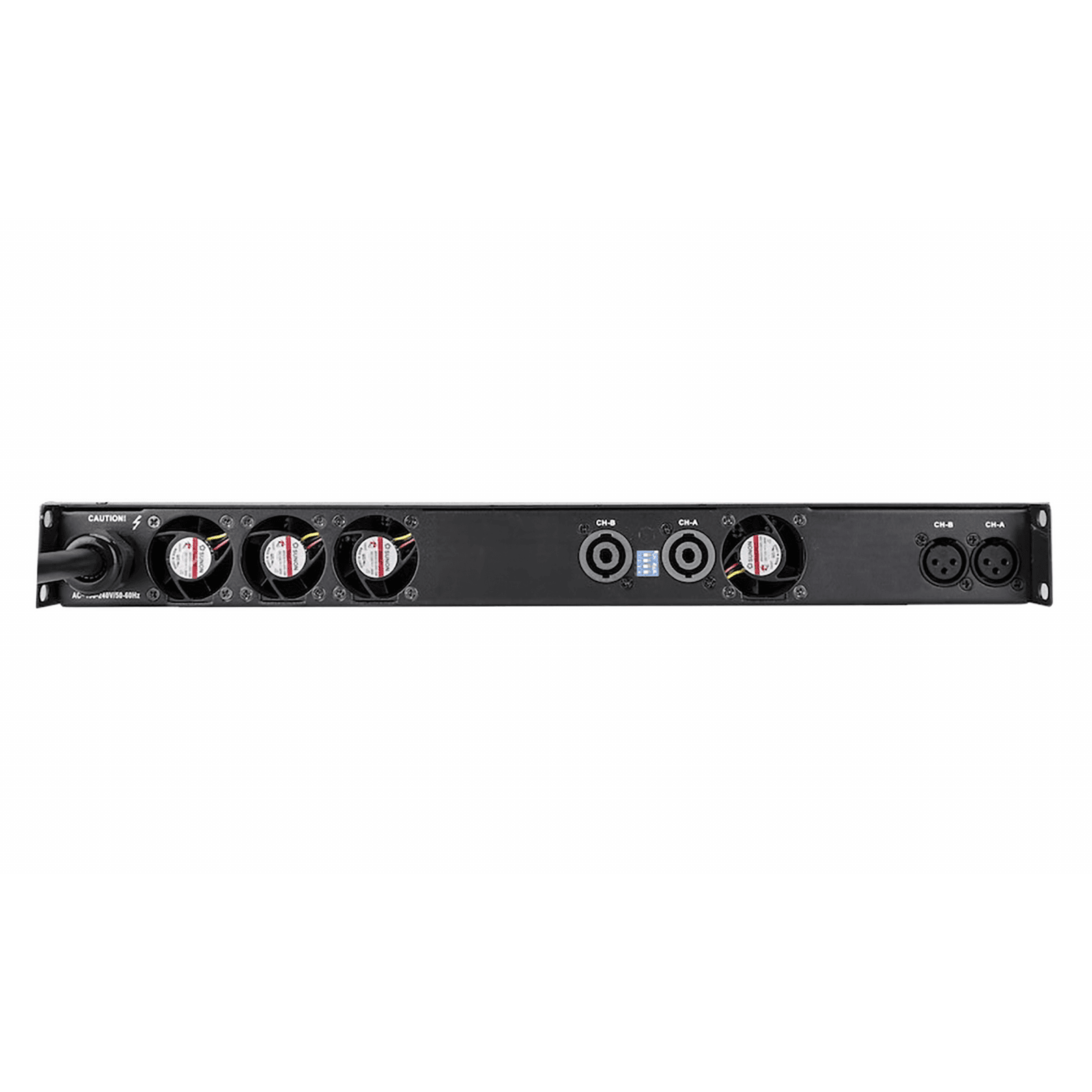

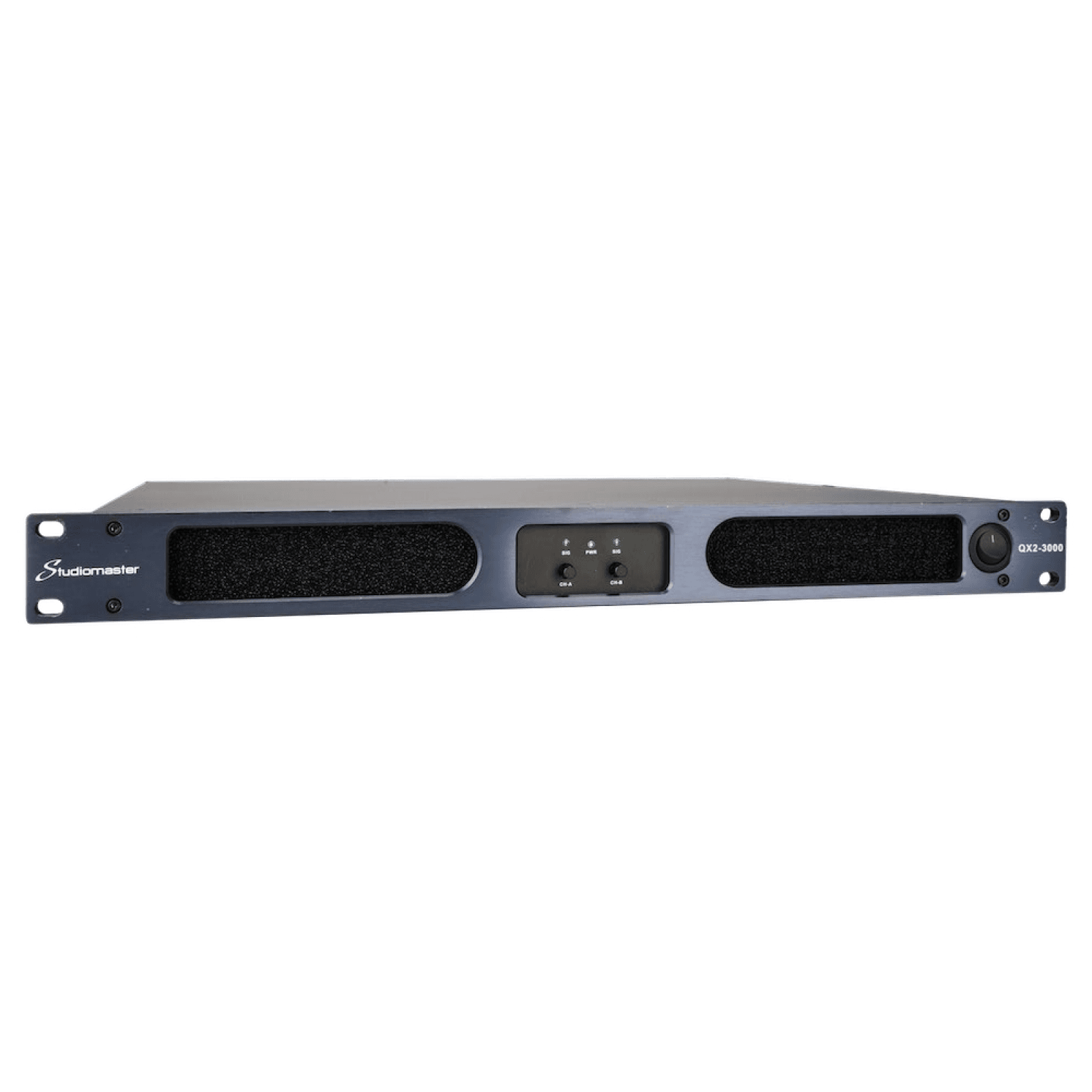

QX2-4000 2x 2000W @ 8ohm, 1 Rack Unit Digital Power Amplifier with PFC
Download product sheetThe QX series digital power amplifiers, all models featuring advanced amplifier adjustment technology to give over 95% efficiency, and stable performance at high current, low impedance conditions.
Additional features include active power factor correction (PFC) and ultra-reliable soft power switching power supply which will operate universally between 90-250V... Read more
The QX series digital power amplifiers, all models featuring advanced amplifier adjustment technology to give over 95% efficiency, and stable performance at high current, low impedance conditions.
Additional features include active power factor correction (PFC) and ultra-reliable soft power switching power supply which will operate universally between 90-250VAC.
The QX series, are all 1U height lightweight designs, weighing less than 12kg. Both 2 and 4 channel versions are available, giving power ratings from 2550 watts per channel up to 5100 watts per channel at 4 ohms.
At 2-ohm operation, the flagship QX4-8000 will supply up to 4 x 4760 watts, making these amplifiers supply extremely high performance, and provide cost effective solutions for multiple install and rental applications, for example line array systems.
Collapse textProduct downloads
Product details
Key features
- 2 Channels, 1x 19” Rack Unit
- 2ohm Reliable Operation in Single Channel or Bridged modes
- Multiple Modes Stereo, Parallel and Bridge modes
- Line Array designed for Install/Rental Systems
- Powerful Designed to Power Large Systems
- Multiple Gain Modes to work with any system
- PFC Universal 90-250V Operation with Power Factor Correction
- Variable Speed Fan Cooling for Reliable Long-Term Operation
Specifications
-
Rated power* 8ohm/Stereo2 x 2000W
-
Rated power* 4ohm/Stereo2 x 3400W
-
Rated power* 2ohm/Stereo2 x 4760W
-
Rated power* 16ohm/Bridge1 x 4000W
-
Rated power* 8ohm/Bridge1 x 6800W
-
Rated power* 4ohm/Bridge1 x 9520W
-
*Rated Powers measureTHD=1%, continuous sine 1kHz, each channel working simultaneously
-
RMS output voltage (THD=1%,1kHz)126.5V
-
Slope (1kHz, bypass LPF)50V/us
-
Input sensitivity (rated output power, 1kHz)38dB, 35dB, 32dB, 29dB Options
-
THD+N (10% rated output power)0.01%
-
IMD-SMPTE (10% rated output power)0.01%
-
DIM30 (10% rated output power)0.01%
-
Crosstalk rejection (less than rated power, 20Hz-1 kHz)≥90 dB
-
Frequency response (10% rated output power, 8ohm, 20Hz-20kHz)±0.2dB
-
Input impedance20kohm (Bal.), 10kohm (Unbal.)
-
Damping factor, 8Ω, 20Hz-200Hz)≥300
-
S/N ratio (A weighted, 20Hz-20kHz)≥112 dB
-
Power supply90-260 VAC, 50-60 Hz
-
ProtectionLow voltage/DC output/thermal/over load protection
-
Dimension (W×H×D)483×44×370mm
-
Net weight9 kg
