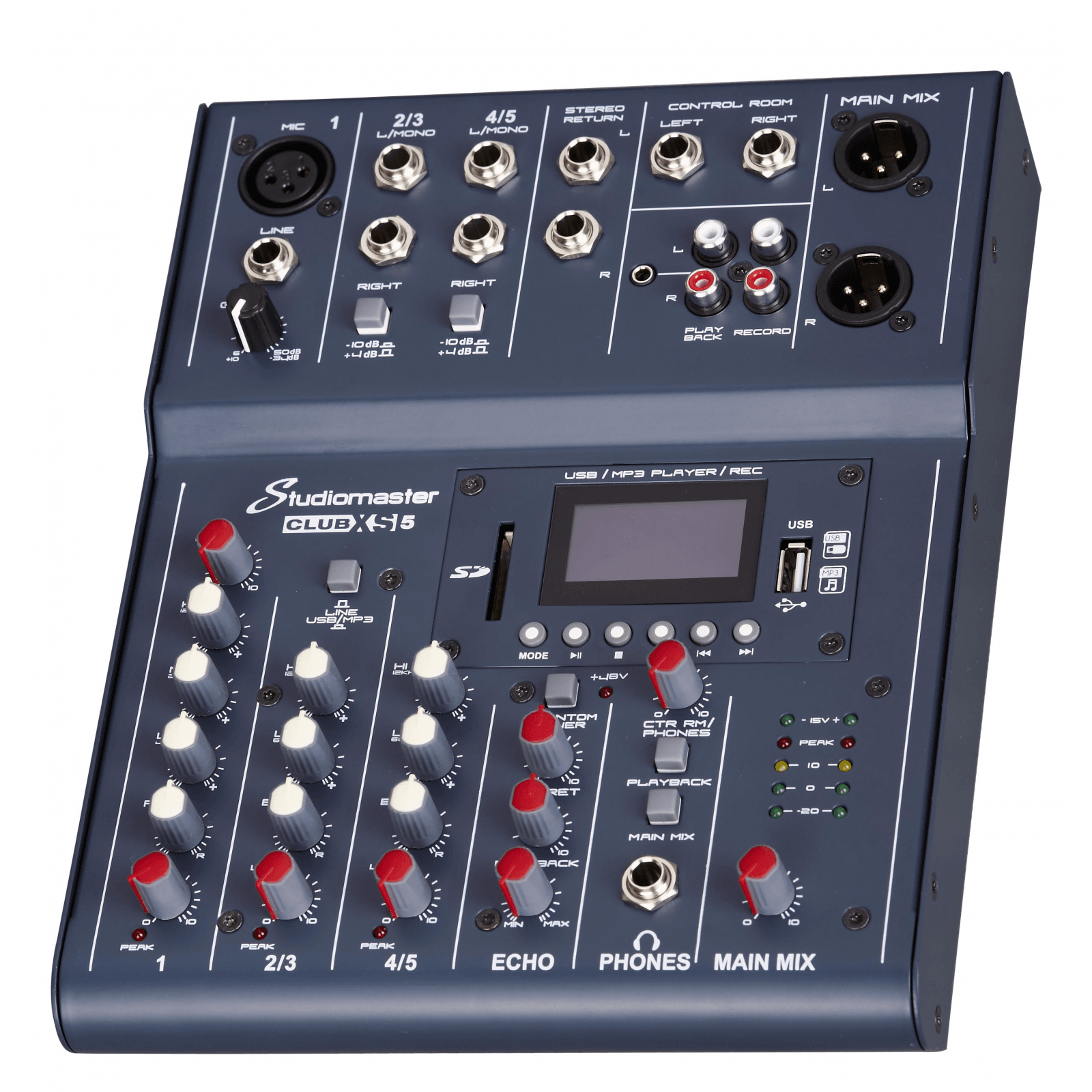

CLUB XS5+ 5-Channel Mixer with Echo and Player
Download product sheetCompact, portable mixing console featuring 5 inputs, Bluetooth connectivity, on-board Echo effects and USB/SD card playback and recording functions. 3 band EQ, 1 auxiliary, balanced mic/line connectors, compressor control, and 2 band EQ with 1 auxiliary for both stereo channels. There are also balanced XLR connectors for the main outputs, jack outputs for cont... Read more
Compact, portable mixing console featuring 5 inputs, Bluetooth connectivity, on-board Echo effects and USB/SD card playback and recording functions. 3 band EQ, 1 auxiliary, balanced mic/line connectors, compressor control, and 2 band EQ with 1 auxiliary for both stereo channels. There are also balanced XLR connectors for the main outputs, jack outputs for control room, and phono connectors for record and playback.
Ultra-compact, lightweight, high quality and extremely versatile, the Club XS 5+ is the perfect mixer for any live performance and home recording situation.
Collapse textProduct details
Key features
- 2 inputs (1 mic channels, 2 stereo channels)
- 1 Auxiliary bus for monitoring and internal effect
- Professional balanced outputs
- High quality microphone pre amp with enhanced compression and gain controls and 3 band EQ
- Echo effect
- Bluetooth playback connectivity
- USB/SD media player and recorder
Specifications
-
Inputs5 (1 Mic Inputs, 2 Stereo Inputs)
-
Mic Gain Range6dB to 50dB
-
Line Gain Range10dB to 34dB
-
EIN-100dB
-
Frequency Response10Hz – 20kHz (+1/-3dB)
-
THD Mic Channel<0.1%
-
Signal to Noise Ratio80dB
-
Output LevelsMax +26dB (Bal), +20dB (unBal)
-
EQHi 12kHz, Mid 2.5kHz, Lo 45Hz
-
USB/SDMP3 Audio playback
-
RecordTo USB drive or SD card (128kbps mono)
-
DSP EffectsEcho effect
-
Power supply100-240 Vac - 50/60Hz
-
Dimension (WxDxH)195 x 80 x 270 mm
