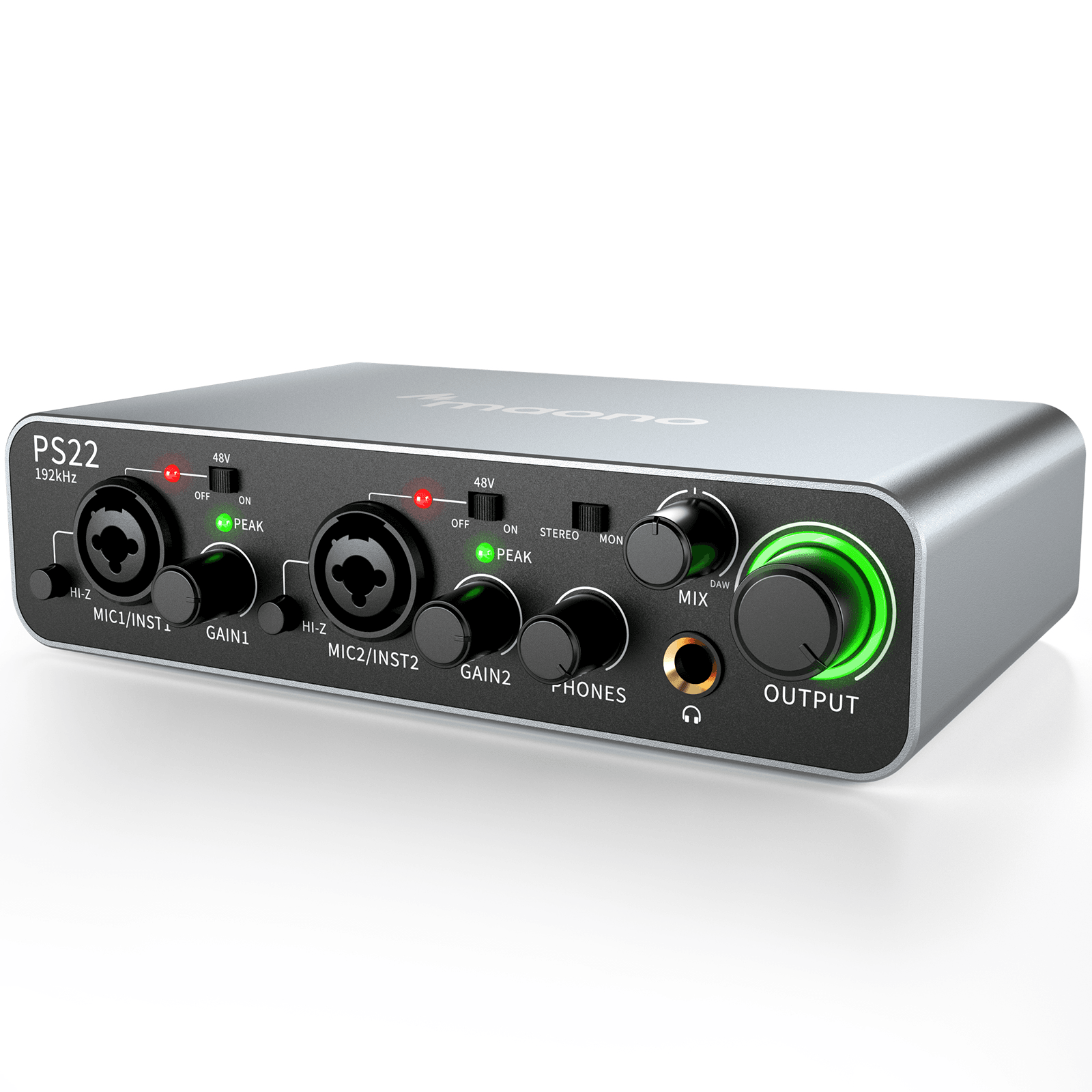

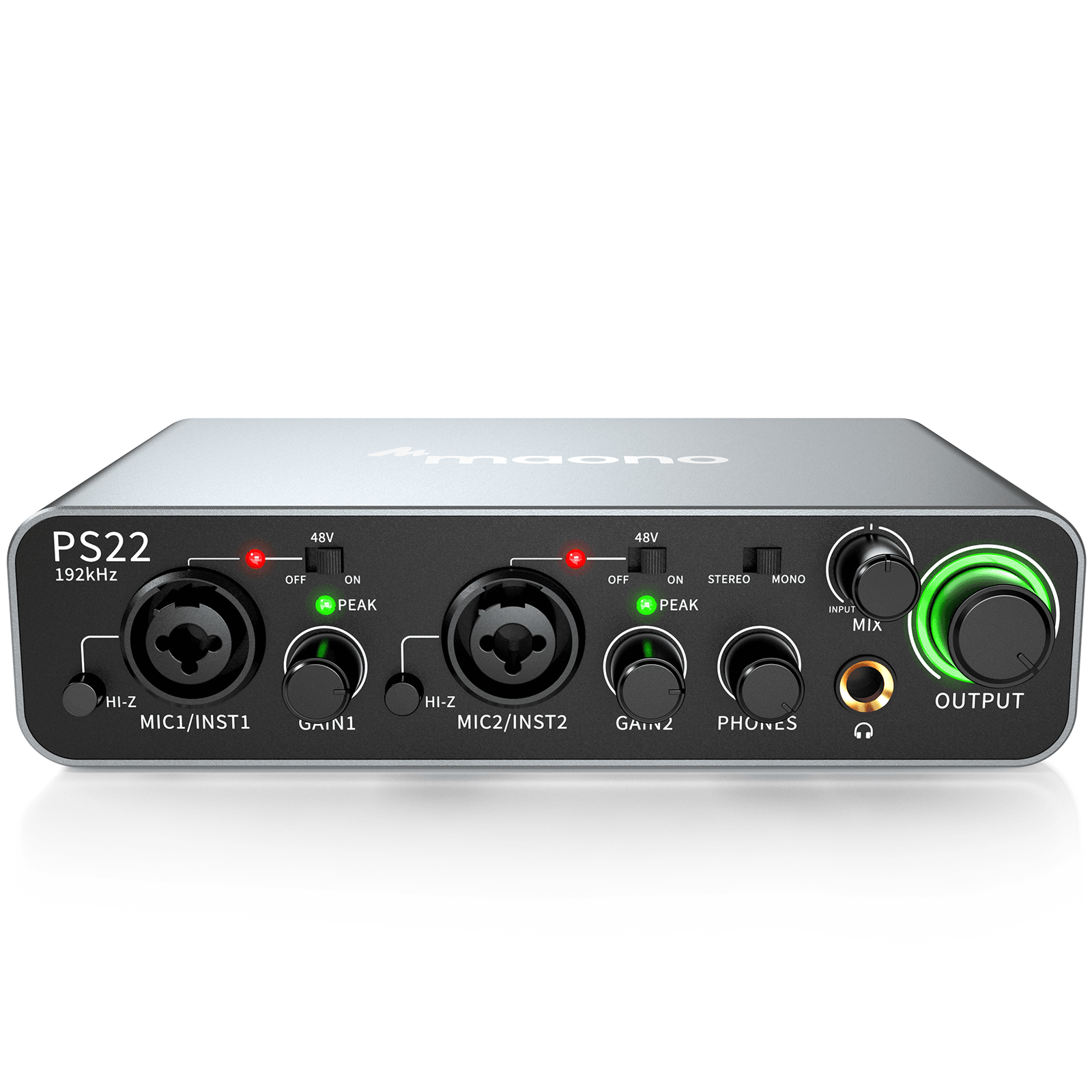

PS22 ProStudio 2x2 USB Audio Interface
Download product sheetMaono ProStudio PS22 streaming audio interface is the ultimate solution for recording high-quality audio and connecting to a wide range of equipment.
Featuring premium preamps with up to 60dB of gain range, 24bit/192KHz sampling rate, and 2-in/2-out configuration, the PS22 delivers studio-level sound for your audio and music production.
Unlike the traditiona... Read more
Maono ProStudio PS22 streaming audio interface is the ultimate solution for recording high-quality audio and connecting to a wide range of equipment.
Featuring premium preamps with up to 60dB of gain range, 24bit/192KHz sampling rate, and 2-in/2-out configuration, the PS22 delivers studio-level sound for your audio and music production.
Unlike the traditional audio interface, PS22supports smatphone connectivity via either USB-C or TRRS connection.
Whether you're a musician, podcaster, streamer or contents creator, the PS22 is perfect tool to take your audio production to the next level.
Collapse text
Media
Highlights
EXCEPTIONAL SOUND PERFORMANCE
With a high sampling rate of 24 bit/192 kHz, the PS22 audio interface ensures precise sound reproduction, low distortion and minimal latency enhancing your recording experiences with high-quality studio sound.
HIGH-QUALITY MICROPHONE PREAMPS
The PS22 Audio Interface offers up to 60 dB of gain range. Capture audio details and every musical nuance precisely using the high-end built-in preamp whether you're using a highly sensitive condenser microphone or a dynamic microphone known for its low sensitivity.
MULTI-CHANNEL INPUT/OUTPUT
The PS22 audio interface features 2 input and 2 output ports, with the ability to expand to an additional 6 virtual channels via MAONO ProStudio routing software. This innovative design sets a new standard in the XLR audio interface market, offering unmatched convenience for multi-channel mixing and live streaming needs.
WIDE CONNECTIVITY

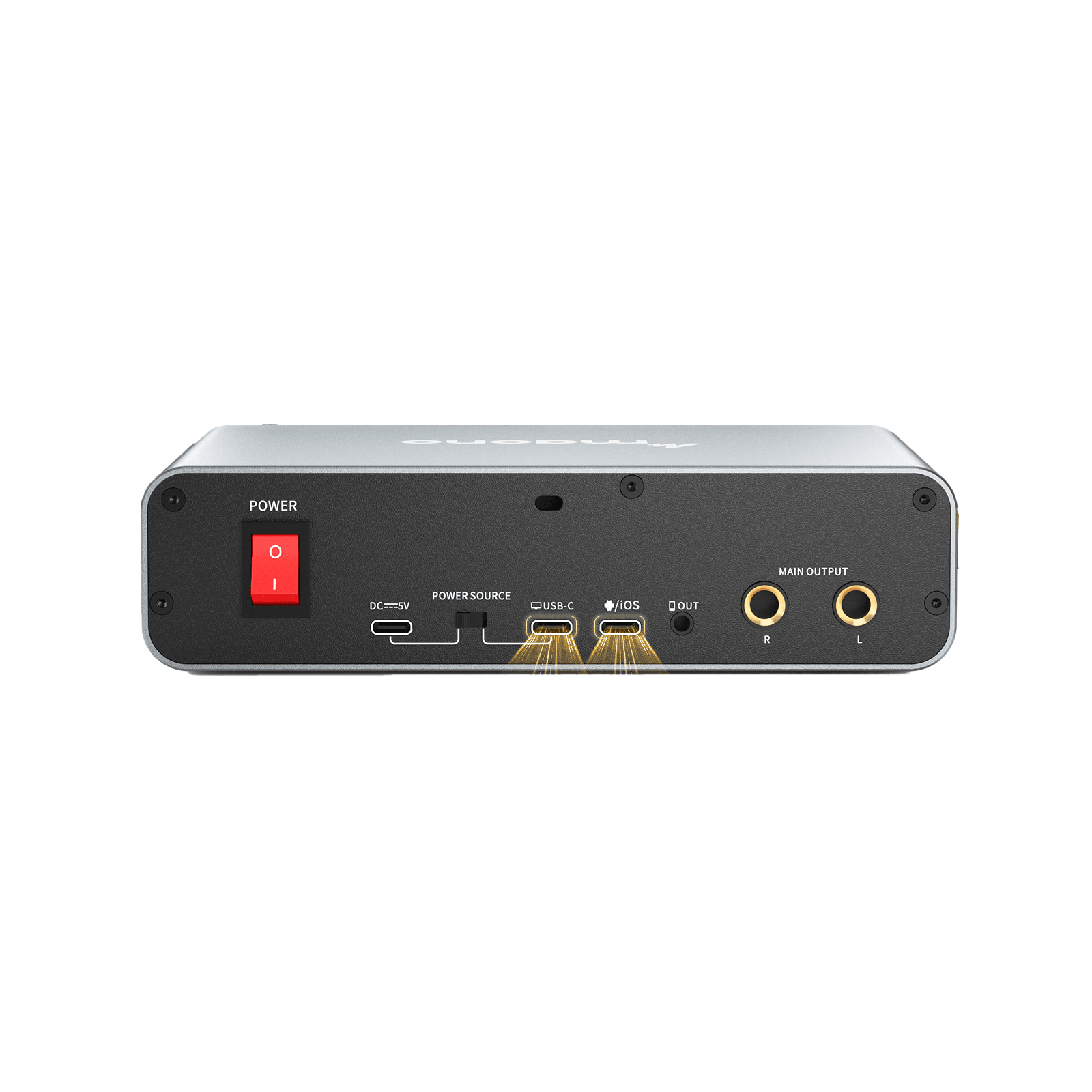

Designed for ease of use, the PS22 XLR interface features dual USB-C ports, ensuring compatibility with various devices including smartphones, computers and tablets so you can connect and record effortlessly wherever you go.
Product details
Key features
- Premium Mic Preamps with up 60dB of gain range
- 24bit/192Khz sampling rate
- 2-In/2-Out with two combo XLR/TS-TRSt/Line-In Inputs
- Dual USB-C Connectivity
- "Pass-Thru" charging for select mobile devices
- Two virtual In and Two virtual out channels
- Phantom Power Switch and LED indicator for Combo XLR Input 1 & 2
- Advanced Routing software
- Monitor Mix with Mono/Stereo Switch
- All Metal Chassis
Specifications
-
Main USB-C Sampling Rate44,1KHz, 48KHz, 88KHz, 96KHz, 176,4KHz, 192KHz
-
Secondary USB-C Sampling Rate48KHz
-
Microphone Inputs - Frequency response20Hz ~ 20KHz, ±0,25dB
-
Microphone Inputs - Dynamic Range105dB (A-Weighted)
-
Microphone Inputs - THD+N Ratio0,00%
-
Microphone Inputs - Noise Ein -127dB (A-Weighted)
-
Microphone Inputs - Max Input Level-5dBu
-
Microphone Inputs - Gain Range6 ~ +60dB
-
Microphone Inputs - Impedance3,3 KΩ
-
Line Inputs - Frequency response20Hz ~ 20KHz, ±1dB
-
Line Inputs - Dynamic Range104dB (A-Weighted)
-
Line Inputs - THD+N Ratio0,00%
-
Line Inputs - Max Input Level8dBu
-
Line Inputs - Gain Range-6 ~ +48dB
-
Line Inputs - Impedance13,5 KΩ
-
TS/TRS Inputs - Frequency response20Hz ~ 20KHz, ±2dB
-
TS/TRS Inputs - Dynamic Range102dB (A-Weighted)
-
TS/TRS Inputs - THD+N Ratio0,01%
-
TS/TRS Inputs - Max Input Level0dBu
-
TS/TRS Inputs - Gain Range3 ~ +57dB
-
TS/TRS Inputs - Impedance100 KΩ
-
Main Outputs - Frequency response20Hz ~ 20KHz, ±0,1dB
-
Main Outputs - Dynamic Range103dB (A-Weighted)
-
Main Outputs - THD+N Ratio0,00%
-
Main Outputs - Max Output Level8dBu
-
Main Outputs - Impedance600 KΩ
-
Headphone Output - Frequency response20Hz ~ 20KHz, ±0,5dB
-
Headphone Output - Dynamic Range102dB (A-Weighted)
-
Headphone Output - THD+N Ratio0,01%
-
Headphone Output - Max Output Power100mW
-
Headphone Output - Impedance18 Ω
-
USB2 x USB 2.0 Type-C Connector
-
Phantom Power48V, 6mA
-
USB-C Input Power Supply5V
-
Max Current1A
-
Dimensions (WxDxH)178 x 125 x 46 mm
-
Weight0,645 Kg
-
Packing Dimensions (WxDxH)193 x 182 x 70 mm
-
Packing Weight1 Kg
